Cassava Cat Litter Production Machine | Eco-Friendly Pellet Making Jinan Eagle

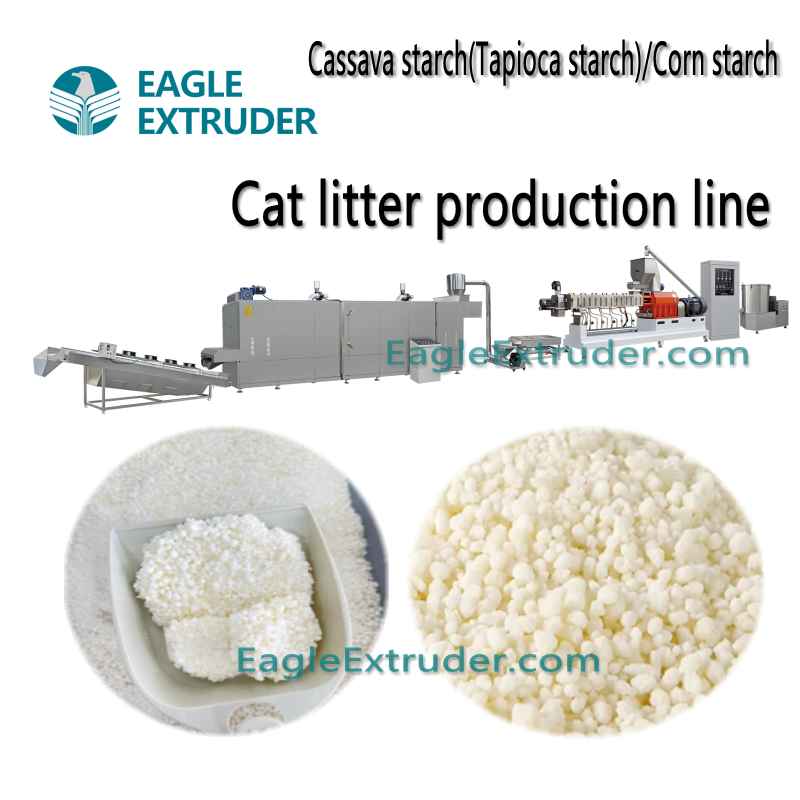

🐾 1. Cat Litter Production Line Using an Extruder 100% cassava starch / corn starch

For Tofu Cat Litter / Plant-Based Biodegradable Pellets

This production line is specially designed to process plant-based materials such as soybean residue (okara), starch, and fiber into high-quality extruded cat litter pellets. The extrusion process enables excellent shaping, clumping, and durability.

🔄 Production Process Flow:

1. Raw Material Feeding
   • Soybean dregs, topiaco starch, corn starch, guar gum, fiber
2. High-Speed Mixer
   • Mix raw materials with water and optional additives (fragrance, baking soda)
3. Twin-Screw Extruder
   • Thermo-mechanical process forms long rods/sticks of uniform diameter
4. Cutter
   • Cuts extruded rods into pellets (e.g., 1.5–5cm)
5. Multi-Layer Belt Dryer
   • Low-temperature drying to reduce moisture to <10%
6. Cooling Conveyor
   • Cools down the pellets to avoid clumping during packing
7. Screening Machine
   • Removes powder and broken particles
8. Optional: Fragrance Sprayer
9. Automatic Packing Machine
   • Weighing, filling, and sealing bags (1kg–6L)

✅ Advantages:

• Strong, uniform pellets with smooth finish
• Highly customizable (fragrance, color, diameter)
• Ideal for tofu cat litter production
• Biodegradable, flushable, and eco-friendly

🟤 2. Cat Litter Production Line Using a Pellet Machine

For Bentonite, Wood-Based, or Paper-Based Cat Litter

This line uses a flat die or ring die pellet machine to compress powdery raw materials into hard cylindrical pellets, commonly used for bentonite, wood fiber, recycled paper, or sawdust cat litter.

🔄 Production Process Flow:

1. Raw Material Crushing & Screening
   • Prepare bentonite clay, wood chips, or recycled paper
2. Drying Unit (if needed)
   • Ensure raw material moisture is around 10–15%
3. Binder Mixing (Optional)
   • Add water, starch, guar gum or additives
4. Pellet Machine (Flat Die or Ring Die)
   • Mechanical compression into cylindrical pellets
5. Cooling Conveyor
   • Harden and cool the pellets
6. Screening Machine
   • Separate fines and irregular pellets
7. Dust Removal System
8. Automatic Packing Machine
   • Bagging into 5kg, 10kg, or bulk bags

✅ Advantages:

• Lower energy consumption
• Simpler structure and maintenance
• Suitable for hard materials (bentonite, wood, paper)
• Cylindrical, dense pellets with longer absorption time

🔍 Comparison: Extruder vs. Pellet Machine for Cat Litter
