Hot air circulating tray type dryer for fruits & vegetables
Date: 2024-04-05 Categories: Dryers|Ovens|Toasters Views: 105

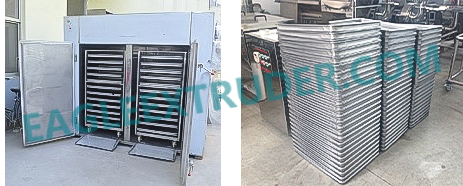

Trays: stainless steel , size 640*460*45mm
1. Explanation
1.Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2.Drying temperature: steam heating 50-130 ℃ , Max.140 ℃ .
3.Electricity and far infrared:50-300 ℃ .Automatic control system and computer control system on request.
4.Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).
5.For electric heated, rated power consumption:15Kw, real consumption : 5-8Kw.
6.The special requirements should be indicated at the time of order.
7.Please consult as for any special requirements.
8.For operation temperature of over 140 ℃ or less than 60 ℃ ,please indicate when order.
9.The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
10.Baking plate dimensions:460*640*45mm
2. Descriptions
Series hot air circulation drying oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can reach 50%. The successful design of hot air circulation drying oven makes that the hot air circulation drying oven in our country catch the advanced level both at home and abroad. In order to save a large quantity of the energy in out country, in order to enhance the economic results of the enterprises, in 1990, the medicine management bureau of the State issued the industry standard and the uniform type is RXH.
3. Applications
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical,chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc
4. Features
Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.
5. Specification
Model | DPGZ-IA | DPGZ-I | DPGZ-II | DPGZ-IIA | DPGZ-III | DPGZ-IIIA | DPGZ-IV |
Each Drying Amount (kg/lot) | 60 | 120 | 240 | 240 | 360 | 360 | 480 |
Evaporation Area (m2) | 7.1 | 14.1 | 28.3 | 28.3 | 42.4 | 42.4 | 56.5 |
Radiator Area (m2) | 15 | 24 | 48 | 48 | 72 | 72 | 96 |
Steam Consumption (kg/h) | 15 | 20 | 40 | 40 | 60 | 60 | 80 |
EleDPGZricalHeating Power (kw) | 6-9 | 15 | 30 | 30 | 45 | 45 | 60 |
Fan Delivery (m2/h) | 3450 | 3450 | 6900 | 6900 | 10350 | 10350 | 13800 |
Fan Power (kw) | 0.45 | 0.45 | 0.45 *2 | 0.45 *2 | 0.45 *3 | 0.45 *3 | 0.45 *4 |
Temperature Difference (ºC) | ± 1 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 |
Outline Dimension (cm) (W *D *H) | 140*120*200 | 230*120*200 | 230*220 *200 | 428*120 *227 | 226*320 *200 | 324*220 *200 | 428*220 *227 |
Auxiliary Drying Cart (sets) | 1 | 2 | 4 | 4 | 6 | 6 | 8 |
Auxiliary Drying Tray (pcs) | 24 | 48 | 96 | 96 | 144 | 144 | 192 |
Total Weight (kg) | 820 | 1580 | 1800 | 1880 | 2100 | 2210 | 2800 |
